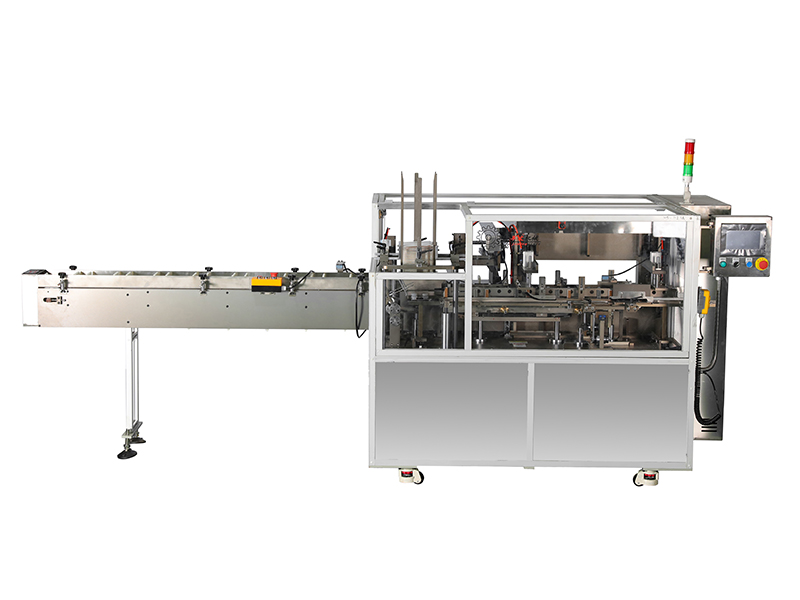

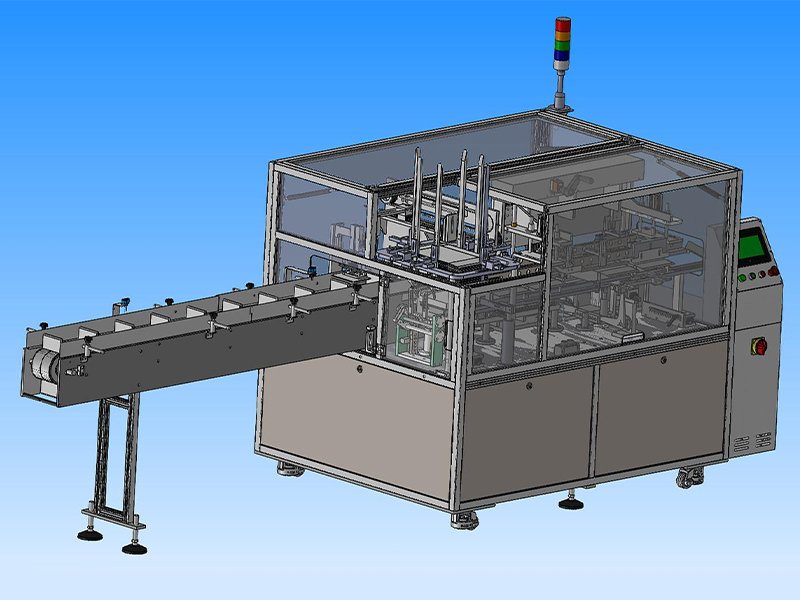

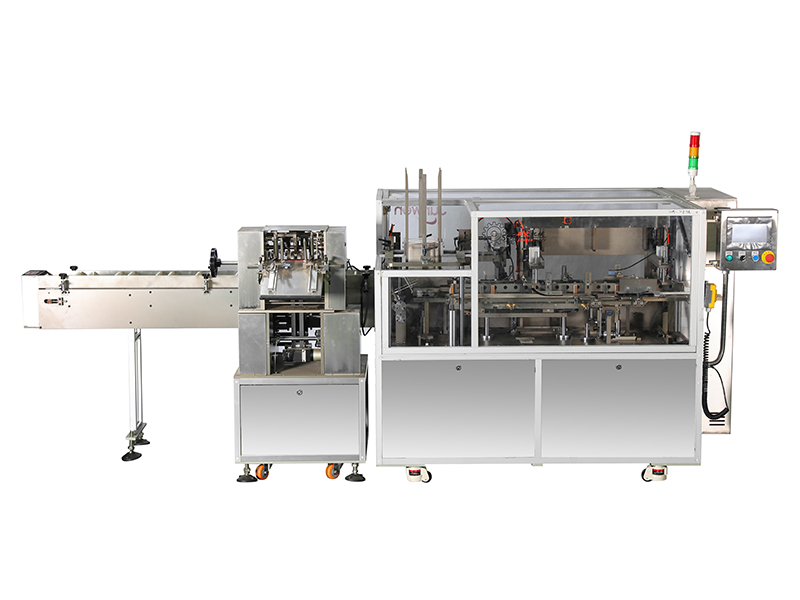

Horizontal Automatic Cartoning Box Packing Machine

1. This machine is a full-automatic stand-alone or continuous use of paper cartooning equipment, all actions are mechanical gears, cams, pendulum, and transmission is completed, with fast speed, stable operation and other characteristics, but also to achieve multi-specification adjustment of the use.
2. Adopt servo + PLC control system + man-machine interface operation to adjust various parameters, more convenient and intuitive monitoring of the operating conditions, fault monitoring pop-up window display, quick and easy to solve various faults.
3. According to different product sizes using the simplest scale labelling design structure, in the replacement of different specifications, can effectively achieve rapid adjustment can be produced.
4. In the touch screen set the relevant data can be produced, a speed adjustable range of 10 ~ 100 packages/min.
5. The moulding track of this machine can be replaced with positive and negative tracks according to the requirements of different products to maximally meet the requirements of customers.
6. The shield adopts a European standard aluminium profile and PC door plate design, and the upper part adopts an aluminium profile and PC plate to form the shield, which plays a safe and beautiful role.

MAIN TECHNICAL PARAMETERS
Model: JW-170 Cartoning Machine
Packing speed: (10 - 100) bag/ min
Carton specifications: L (60 - 200) * W (40 - 165) * H (20 - 65) mm
Carton Material: 200-300g (White Card Stock) or 250-350g ( Grey Board )
Input power: Three - phase Four - wire 380V/ 50Hz
Total power: 1.15 kw
Equipment weight: 900 kg
BOPP double-sided heat-sealing film(commonly known as smoke film)
Inner hole of film roll: 70 Outer diameter: 300mm
Junwen proudly presents the JW-170 Cartoning Machine, a true embodiment of excellence in packaging technology. Designed to redefine packaging processes, this machine seamlessly blends innovation, efficiency, and user-centric design to create an unparalleled packaging experience. Tailored for both standalone and inline operations, the JW-170 is set to transform the way products are packaged.
1. Engineering Excellence:
The JW-170 Cartoning Machine operates on a sophisticated mechanical configuration, driven by precision mechanical gears, cams, rocker arms, and linkages. This harmonious interplay of components ensures rapid and stable operations, setting a new benchmark for efficiency in the industry. Whether operating in isolation or integrated into a production line, the JW-170 delivers unmatched performance.
2. Intelligent Control and Monitoring:
Powered by a combination of servo control, PLC technology, and an intuitive human-machine interface, the JW-170 provides unrivaled control over various parameters. This sophisticated design not only facilitates seamless adjustments but also enables real-time monitoring of operational status. Fault alerts displayed through pop-up windows streamline troubleshooting, reducing downtime and enhancing operational efficiency.
3. Streamlined Adjustments for Versatility:
In response to varying product sizes, the JW-170 features a simplified scale marking system that facilitates quick adjustments when switching between production runs of different specifications. This intuitive system ensures rapid adaptability, allowing manufacturers to stay agile in an ever-changing market landscape.
4. Customizable Production Speed:
With a production speed range of 10 to 100 packages per minute, the JW-170 empowers manufacturers to tailor their operations to meet dynamic production demands. This adaptability ensures that efficiency and quality are maintained even in the face of evolving market conditions.
5. Dynamic Forming Track Adaptation:
A hallmark of the JW-170 is its dynamic forming track adaptability. This innovative feature enables swift transitions between forward and reverse tracks, catering to the diverse requirements of different products. By maximizing adaptability, the JW-170 ensures that your packaging process is optimized for various products and configurations.
6. Aesthetic and Functional Protection:
Safety and aesthetics converge harmoniously in the JW-170's protective cover. Crafted using European-standard aluminum profiles and PC door panels, the cover ensures both comprehensive protection and visual appeal. The upper section, composed of aluminum profiles and PC panels, not only enhances operational safety but also contributes to the machine's overall aesthetic.
As a pioneer in the packaging industry, Junwen introduces the JW-170 Cartoning Machine—a testament to our commitment to innovation, operational excellence, and user-centric design. This cutting-edge solution empowers businesses to enhance their packaging operations, adapt to changing market demands, and maintain the highest standards of efficiency and safety. Embrace the future of packaging technology with the JW-170 and embark on a journey towards unparalleled packaging excellence.
Inquiry Us
  • Product Description

+86 159 5890 5083

ywjwjx520@126.com

Technical parameters:

JW-170 Cartoning Machine Main Technical Parameters
Packaging speed: Single box wrapping film per minute(10～100)
Carton specification: L（60～200）W（40～165）H（20～65）mm
Carton paper quality 200-300g (white card) or 250-350g (greyboard)
Input power: Three-phase four-wire 380V 50Hz
Design total power: 1.15kw
Equipment weight: About 900kg
Package material: BOPP double-sided heat-sealed film, inner hole Φ70 outer diameter Φ300mm

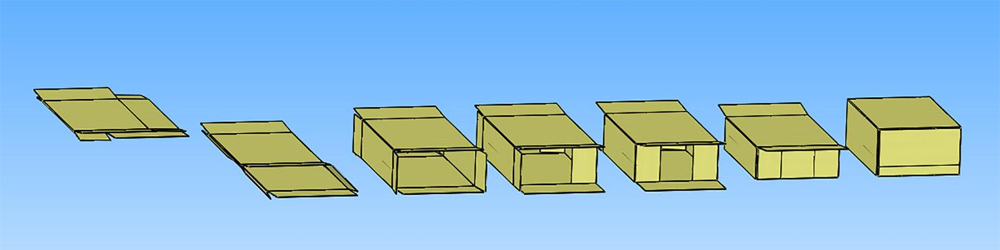

JW-170 cartoning flow chart
