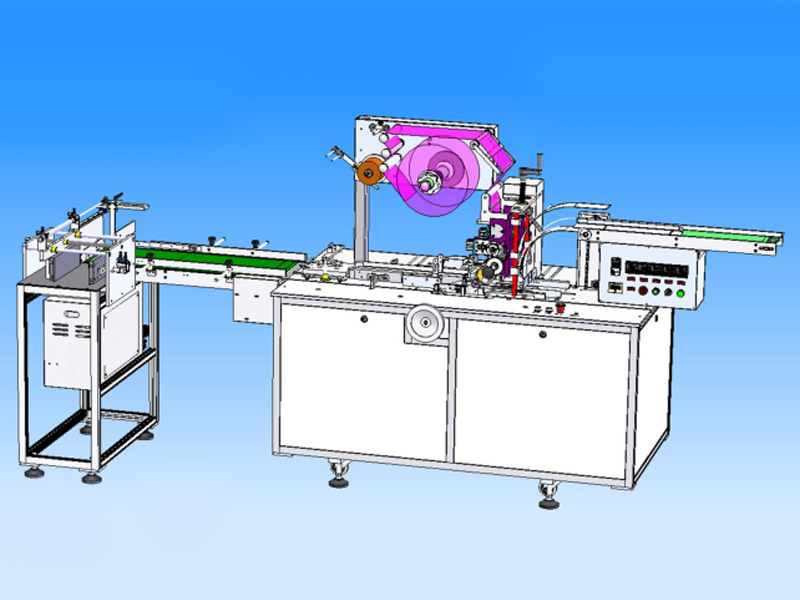

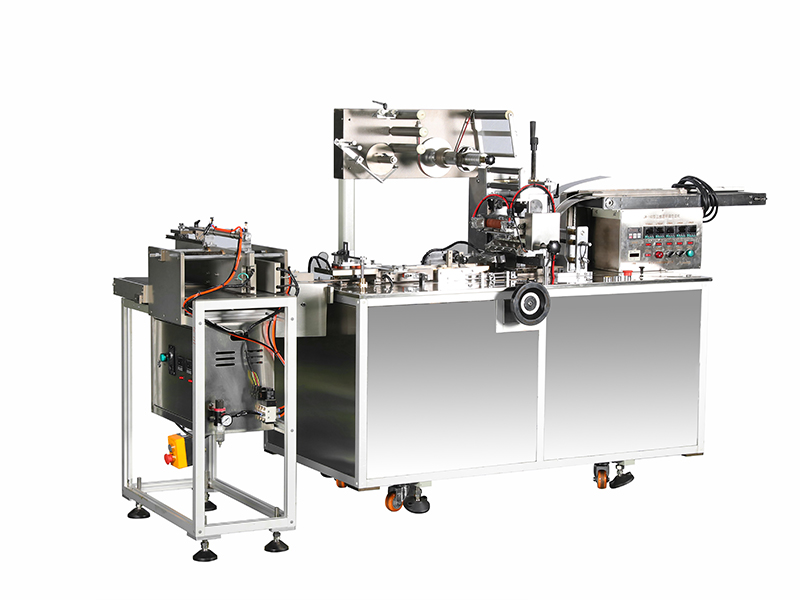

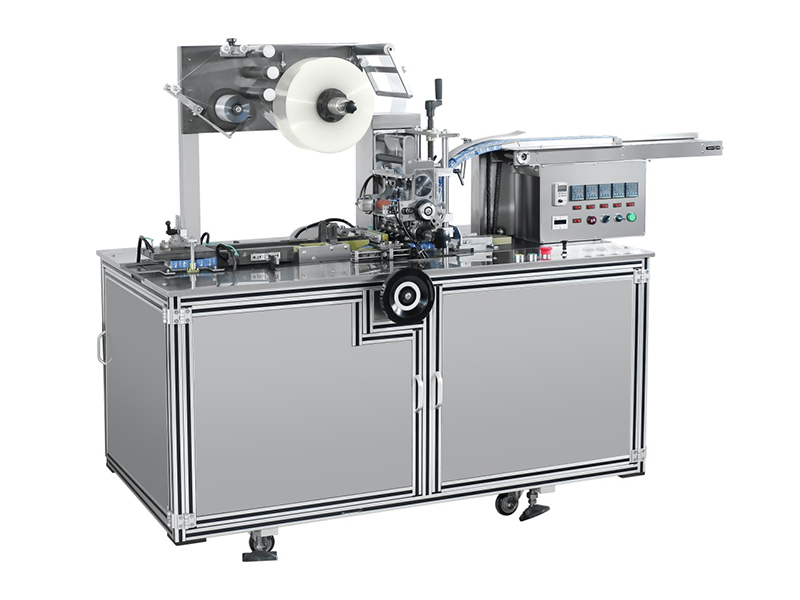

JW-160B type threedimensional transparent film folding and wrapping machine

1. This machine is a fully automatic high-speed stand-alone transparent film packaging equipment, adopting flat-push packaging mode, all wrapping and heat sealing actions are completed by mechanical gears, cams, and connecting rod drive, with fast speed, stable operation, and other characteristics.
2. Replacement of different size molds can pack different size products, adopting a new simple design structure, which makes the replacement of molds easier and faster.
3. Adopt a frequency converter to adjust the packing speed, and adjust the production speed according to different product sizes, adjustable range of 10~150 packages/minute.
4. According to the need of the product, the back channel can increase the two sides of the ironing mechanism with the use of the six sides of the product are ironing wrinkles effect is more perfect.
5. Simple and quick disassembly and installation of the pull-line function, easy to use a variety of anti-counterfeiting easy to pull the line function, can play a role in anti-counterfeiting, has been unsealed.
6. Conveyor feeding adopts a manual discharging mechanism, which is convenient for fast feeding to meet the production speed.
7. It is equipped with a jamming overload protection device and a double-layer air-blowing auxiliary film-lowering device.

MAIN TECHNICAL PARAMETERS
Model: JW-160-B Transparent film 3D packaging machine
Packing speed: Single box film per minute (10 - 150)
Carton specifications: L (30-170) * W (20-80) * H (6-30)mm
Input power: Two-phase Three- wire 220V/ 50Hz
Total power: 4.2kw
Heat sealing temperature: 110-180 ℃
Equipment weight: 450kg
Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
At the heart of the JW-160-B is a commitment to delivering unparalleled performance and aesthetics. This fully automated, standalone machine is designed to cater to a diverse range of industries, where product presentation and protection are paramount. Let's delve into the myriad features that set the JW-160-B apart from the competition.
Engineering Excellence:
The JW-160-B's remarkable performance is underpinned by an ingenious mechanical drive system. With mechanical gear, cam, and linkage technology, the machine achieves fluid and rapid wrapping and heat-sealing actions. This distinctive flat-push packaging methodology redefines efficiency and consistency, ensuring that your products are packaged with utmost precision and speed.
Adaptability Redefined:
One of the machine's standout features is its adaptability. By effortlessly accommodating different mold specifications, the JW-160-B can package an array of product sizes. The streamlined design not only enhances the machine's aesthetic appeal but also simplifies mold replacement, saving you valuable time and resources.
Tailored Speed Control:
Flexibility in production is a hallmark of the JW-160-B. Its integrated frequency converter allows you to adjust packaging speeds according to product dimensions. With a versatile speed range of 10 to 150 packages per minute, you have the power to fine-tune your production process to meet demand variations effectively.
Unmatched Finishing Touches:
Imagine a packaging solution that ensures the perfection of your products' appearance. The optional dual-sided embossing unit can be seamlessly integrated, guaranteeing impeccably flat and crease-free surfaces on all six sides of your products. This level of precision takes your packaging aesthetics to the next level, leaving a lasting impression on your customers.
Security and User-Friendly Design:
In an era where consumer trust is paramount, the JW-160-B incorporates a user-friendly quick-detach pull-tab feature. This innovation not only adds an extra layer of security by acting as an anti-counterfeit measure but also provides clear evidence of tampering, instilling confidence in both you and your customers.
Effortless Material Handling:
The manual feeding mechanism has been thoughtfully designed for ease of use. Loading materials swiftly and efficiently is critical for maintaining uninterrupted production. The JW-160-B's feeding mechanism ensures seamless material replenishment, supporting your operational efficiency.
Safety and Efficiency Synergy:
Safety is of paramount importance in any manufacturing process. The JW-160-B incorporates advanced features like the smart overload protection system and the double-layer air-assisted film feeding device. These innovations not only contribute to the machine's reliability but also enhance operator safety, fostering a secure and productive working environment.
In the ever-evolving landscape of packaging technology, the JW-160-B Transparent Film 3D Packaging Machine stands as a testament to Junwen's unwavering commitment to innovation. This remarkable solution empowers businesses across industries to streamline their packaging operations, enhance product presentation, and maintain the highest standards of quality and security.
Inquiry Us
  • Product Description

+86 159 5890 5083

ywjwjx520@126.com

Technical parameters:

JW-160-B type Main Technical Parameters
Packing speed: Single box film wrapping per minute(10～150)
Packing size: L（30～170）W（20～80）H（6～30）mm
Input power: Two-phase three wire 220V 50Hz
Total design power: 4.2kw
Equipment weight: 450kg
Package material: BOPP double-sided heat-sealed film, inner hole Φ70 outer diameter Φ300mm, various kinds of easy-pull cables.

USE PACKAGING MATERIALS

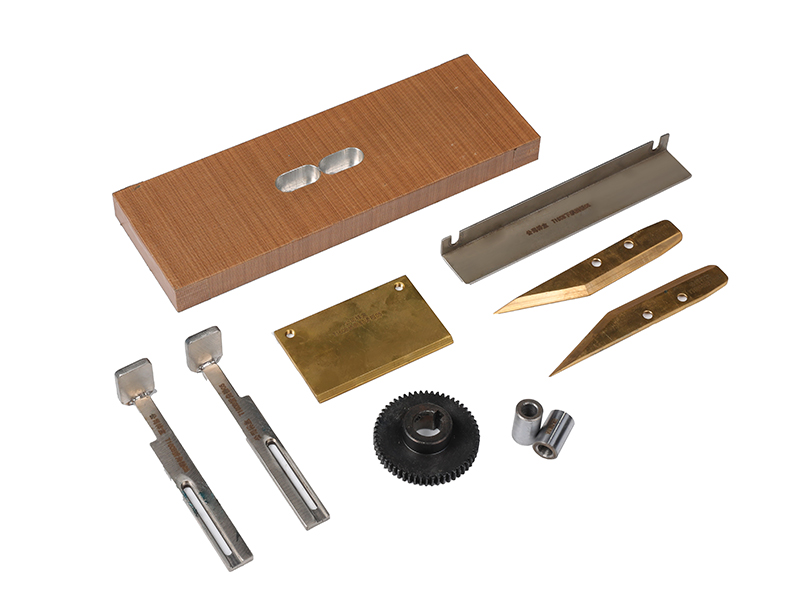

This machine complete set of molds: Packaging sample box picture: BOPP double-sided heat sealing film picture: Various kinds of easy-tear lines Picture:

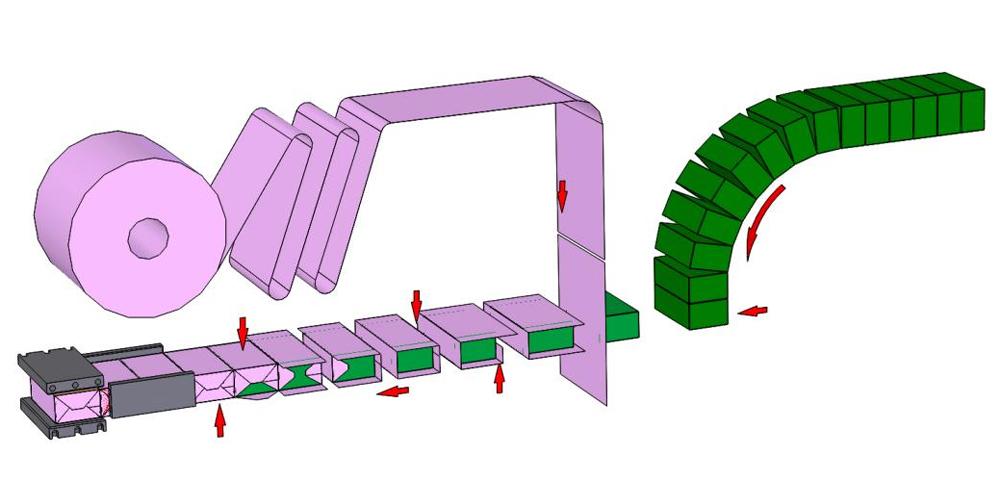

Flowchart of the envelope
