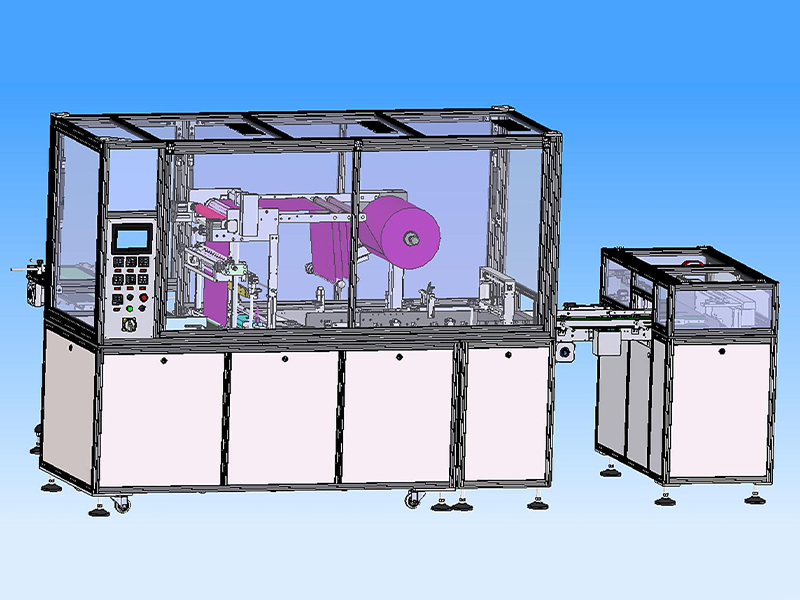

Automatic Transparent film 3D packaging machine

1. This machine is a fully automatic medium-speed single or continuous use of three-dimensional transparent film packaging equipment, the use of flat-push packaging mode, wrapping, and heat sealing action are mechanical sprocket, cam, linkage, cylinder drive to complete, with fast speed, stable operation, and other characteristics.
2. Replacement of different size molds can pack different size products, adopting a new simple design structure, which makes the replacement of molds easier and faster.
3. Adopt servo control system + human-machine interface operation to adjust various parameters, according to different product sizes in the touch screen to set the relevant data that can be produced, the speed can be adjusted from 10 to 50 packages/min.
4. The molding track is equipped with point ironing + flat ironing + up and down shaping beauty device, which makes the product more fitting and beautiful after wrapping the film.
5. Simple and fast dismantling and pulling function, easy to use various anti-counterfeiting unsealing easy to tear the line function, can play the role of moisture has been unsealed.
6. Automatic conveying and feeding and manual conveying and discharging are two kinds of feeding mechanisms, automatic conveying and feeding can be connected with the fully automated unmanned production line to use.
7. The automatic feeding mechanism has the function of stopping the machine without a box, and it is equipped with a protection device for the card box unpacking and the three-layer blowing-assisted film-unloading device.
8. The protective cover is designed with a European standard aluminum profile and stainless steel door plate, and the upper part is made of an aluminum profile and PC board, which plays the role of safety and beauty.

MAIN TECHNICAL PARAMETERS
Model: JW-280-B Transparent film 3D packaging machine
Packing speed: Single box film per minute (10 - 50)
Carton specifications: L (50 - 280) * W (40 - 180) * H (20 - 80)mm
Input power: Three- phase Five- wire 380V/ 50Hz
Total power: 12.0 kw
Heat sealing temperature: 110-180 ℃
Equipment weight: 850 kg
Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
Unlock the future of packaging with the JW-280-B Transparent Film 3D Packaging Machine, a testament to Junwen's unwavering commitment to innovation and excellence. Tailored for medium-speed standalone and inline operations, this machine is a symphony of cutting-edge technology and user-centric design, revolutionizing the art of packaging.
Precision Engineering:
At the heart of the JW-280-B lies an intricately woven web of mechanical chain wheels, cam mechanisms, linkages, and pneumatic cylinders. This symphony of engineering ensures seamless wrapping and heat-sealing actions, resulting in impressive speeds and impeccable stability. The JW-280-B redefines packaging efficiency and reliability.
Adaptive Modularity:
A hallmark of versatility, the JW-280-B allows for effortless mold changes to accommodate diverse product sizes. This intuitive transition between molds enhances adaptability, ensuring that the machine can cater to a wide array of dimensions, meeting the dynamic demands of your production line.
Controlled Precision through Servo Technology:
Empower operators with precise control through the JW-280-B's servo control system, seamlessly integrated with a user-friendly human-machine interface. Adjusting parameters for distinct product sizes is as intuitive as configuring relevant data on the touchscreen, enabling production speeds ranging from 10 to 50 packages per minute.
Elevated Aesthetics and Forming Innovation:
Elevating your packaging presentation, the JW-280-B features a specialized forming track equipped with point embossing, top and bottom contouring, and beauty enhancement units. This orchestrated integration guarantees a snug fit and elevates product aesthetics, setting new benchmarks for packaging excellence.
User-Focused Security and Practicality:
Incorporating a swift-detach pull-tab feature, the JW-280-B boasts both tamper-evident assurance and moisture-resistant sealing. This dual-functionality innovation safeguards products against tampering and moisture intrusion, bolstering consumer confidence in the integrity of the contents.
Seamless Material Handling:
Addressing your operational needs, the JW-280-B integrates both automatic and manual feeding mechanisms seamlessly. Whether harmonizing with a fully automated production line or allowing for manual intervention, this machine streamlines material handling, maximizing operational efficiency.
Intelligent Safety and Functionality:
Safety takes precedence, as evident in the JW-280-B's automatic feeding system featuring a no-box stop function. Additional features, including box ejection protection and a triple-layer air-assisted film feeding mechanism, contribute to a secure and optimized production environment.
Aesthetic and Functional Protection:
The JW-280-B seamlessly merges aesthetics with safety, featuring a European-standard aluminum frame and stainless steel door panels. The upper portion, comprising aluminum profiles and PC panels, offers a visually appealing protective cover that augments operational safety while elevating the machine's overall visual appeal.
With the JW-280-B Transparent Film 3D Packaging Machine, Junwen redefines packaging excellence. This transformative solution encapsulates Junwen's dedication to advancing packaging technology, enhancing packaging processes, elevating product presentation, and prioritizing operational safety.
Inquiry Us
  • Product Description

+86 159 5890 5083

ywjwjx520@126.com

Technical parameters

JW-280-B type Main Technical Parameters
Packing speed: Single box film wrapping per minute(10～50)
Packing size: L（50～280）W（40～180）H（20～80）mm
Input power: Three-phase five-wire 380V 50Hz
Total design power: 12.0kw
Equipment weight: 850kg
Package material: BOPP double-sided heat sealing film, inner hole Φ70 outer diameter Φ300mm, various kinds of easy-pull cables.

USE PACKAGING MATERIALS

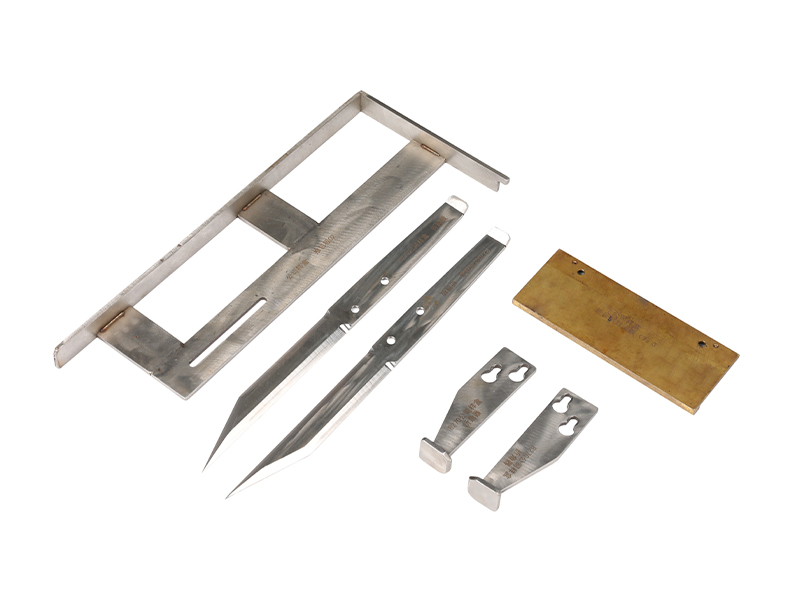

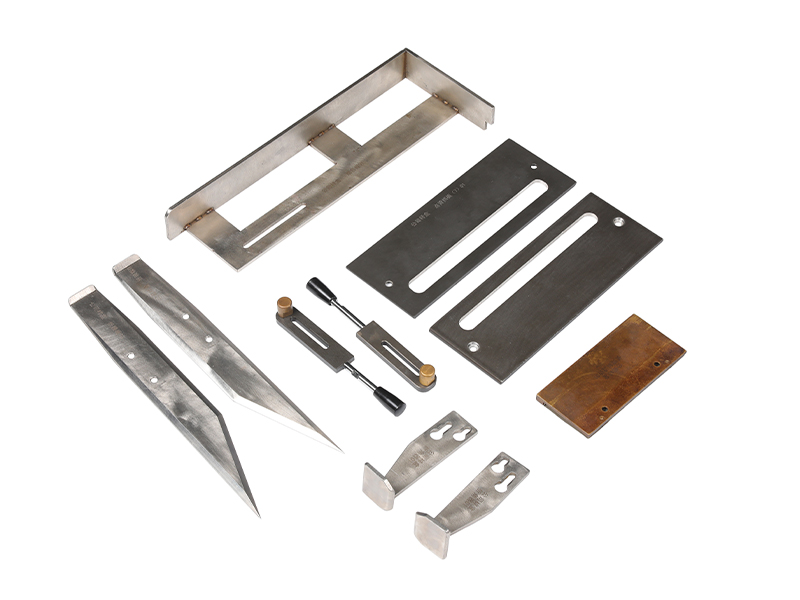

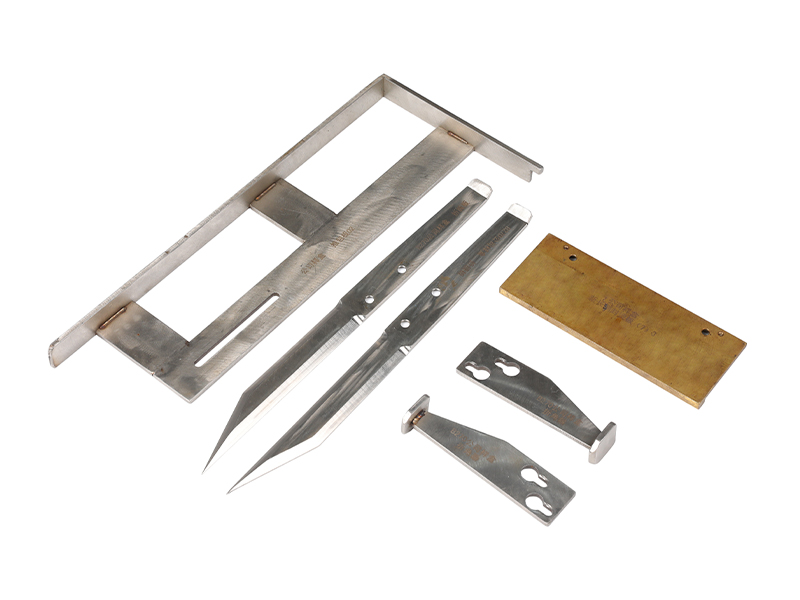

Complete set of molds for this machine: Pictures of sample packaging boxes: Picture of BOPP double-sided heat sealing film: Pictures of various easy-to-tear threads:

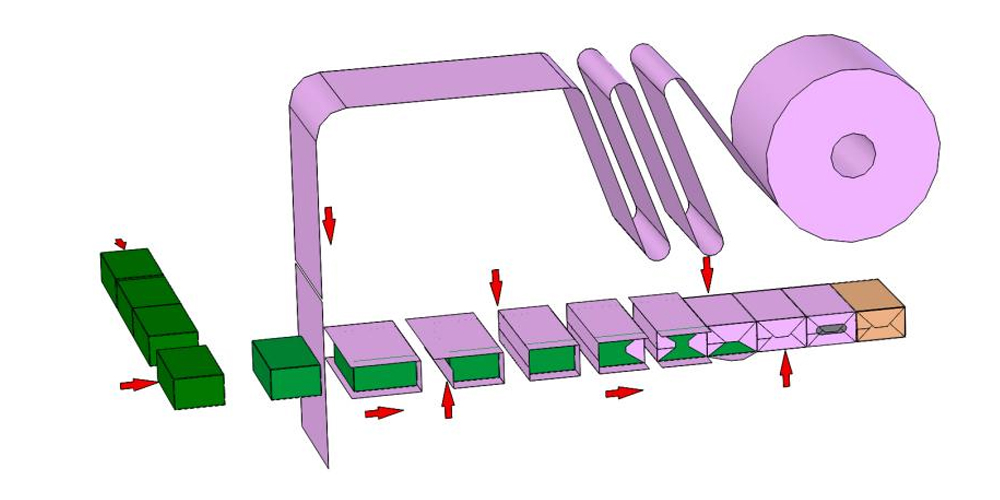

Flowchart of the envelope
