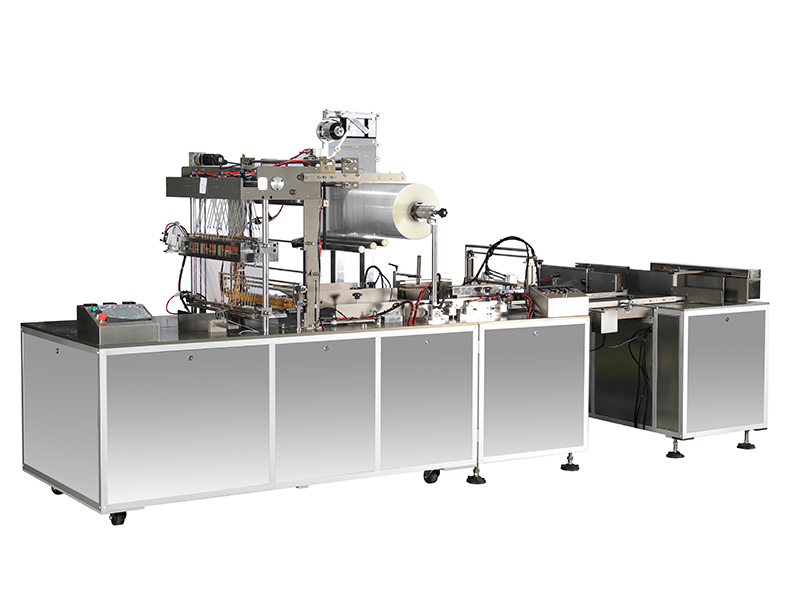

Outer Packing Transparent film 3D packaging machine

1. This machine is a fully automatic medium-speed stand-alone or continuous use of three-dimensional transparent film packaging equipment, the use of flat-push packaging, wrapping and heat sealing action are mechanical sprockets, cams, connecting rods, cylinder drive to complete, with stable operation and other characteristics.
2. This machine mainly packs big sets of box products, and can pack different sizes of products by replacing different sizes of moulds, and adopts a new simple design structure, which makes the replacement of moulds simpler and faster.
3. Adopting servo control system + human-machine interface operation to adjust various parameters, according to different product sizes in the touch screen to set the relevant data that can be produced, the speed can be adjusted from 10 to 40 packages/min.
4. The moulding track is equipped with point ironing + flat ironing + up and down shaping beauty device, which makes the product more fitting and beautiful after wrapping the film.
5. Simple and fast dismantling and pulling function, easy to use all kinds of anti-counterfeiting unsealing easy to tear the line function, can play the role of moisture-proof has been unsealed.
6. Automatic conveying and feeding and manual conveying and discharging are two kinds of feeding mechanisms, automatic conveying and feeding can be connected with the fully automated unmanned production line to use.
7. The automatic feeding mechanism has the function of stopping the machine without a box, and it is equipped with a protection device for the card box unpacking and the three-layer blowing-assisted film-removal device.
8. The protective cover is designed with a European standard aluminium profile and stainless steel door plate, and the upper part of the cover is made of an aluminium profile and PC board, which plays the role of safety and beauty.

MAIN TECHNICAL PARAMETERS
Model: JW-450 Transparent film 3D packaging machine
Packing speed: Single box film per minute (10 - 40)
Carton specifications: L (50 - 450) * W (40 - 300) * H (20 - 140)mm
Input power: Three- phase Five- wire 380V/ 50Hz
Total power: 10.0 kw
Heat sealing temperature: 110 - 180 ℃
Equipment weight: 880 kg
Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
Experience packaging excellence like never before with the JW-450 Transparent Film 3D Packaging Machine, a testament to Junwen's commitment to quality and innovation. Designed for medium-speed standalone or inline operations, this machine encapsulates cutting-edge technology and user-centric design to redefine packaging standards.
Precision and Reliability:
At the core of the JW-450 lies precision-driven mechanics. Mechanisms including mechanical chain wheels, cam systems, linkages, and pneumatic cylinders work in harmony, delivering unmatched stability and flawless packaging execution. Each movement reflects Junwen's dedication to precision engineering.
Tailored for Bulk Packaging:
The JW-450 takes center stage in bulk packaging, showcasing its adaptability through effortless mold changes for varying product sizes. Boasting an elegant, minimalist design, the machine ensures quick and seamless mold swapping, streamlining the packaging process.
Seamless Control with Servo Technology:
Empower your operations with the JW-450's advanced servo control system and intuitive user interface. With a simple touch on the screen, operators can fine-tune parameters to match diverse product dimensions, achieving speeds ranging from 10 to 40 packages per minute.
Crafting Aesthetic Excellence:
Elevate the visual appeal of your products through the JW-450's forming track, equipped with point embossing, top and bottom contouring, and beauty enhancement units. This innovation ensures products are enveloped in the transparent film with precision, delivering both form and aesthetics.
Elevated Security and Convenience:
The JW-450's quick-detach pull-tab mechanism offers both tamper-evident security and moisture-resistant sealing. Unveiling a fusion of protection and accessibility, this feature safeguards against unauthorized access while preserving product freshness.
Effortless Material Handling:
Adapting to your operational needs, the JW-450 seamlessly integrates automatic and manual feeding mechanisms. Whether aligning with a fully automated production line or requiring manual intervention, the machine ensures flawless material handling.
Optimal Safety and Efficiency:
Safety and efficiency harmonize within the JW-450, featuring automatic feeding with a no-box stop function. This, coupled with box ejection protection and a triple-layer air-assisted film feeding mechanism, ensures operations remain safe, efficient, and seamless.
Balancing Form and Function:
The JW-450 boasts a European-standard aluminum frame paired with stainless steel door panels, creating a marriage of functionality and aesthetics. Its upper section, composed of aluminum profiles and PC panels, forms a protective cover that enhances both operational safety and visual appeal.
With the JW-450 Transparent Film 3D Packaging Machine, Junwen embarks on a journey of pioneering packaging excellence. Embrace the future of packaging technology, elevating not only your packaging processes but also your product presentation and operational safety. Junwen invites you to embrace the future with the JW-450, setting new benchmarks in packaging innovation.
Inquiry Us
  • Product Description

+86 159 5890 5083

ywjwjx520@126.com

Technical parameters

JW-450 Main Technical Parameters
Packing speed: Single box film wrapping per minute(10～40)
Packing size: L（50～450）W（40～300）H（20～140）mm
Input power: Three-phase five-wire 380V 50Hz
Total design power: 10.0kw
Equipment weight: 880kg
Package material: BOPP double-sided heat-sealed film, inner hole Φ70 outer diameter Φ300mm, various kinds of easy-pull cables.

USE PACKAGING MATERIALS

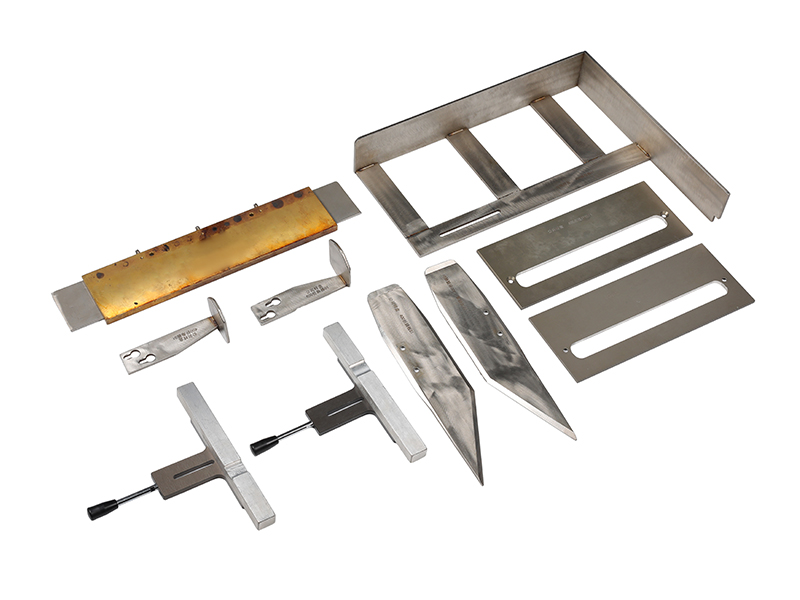

Complete set of molds for this machine: Pictures of sample packaging boxes: Picture of BOPP double-sided heat sealing film: Pictures of various easy-to-tear threads:

Flowchart of the envelope
