Cellophane Wrapping Machine

  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine
  • Coffee Tea Box Transparent film 3D packaging machine

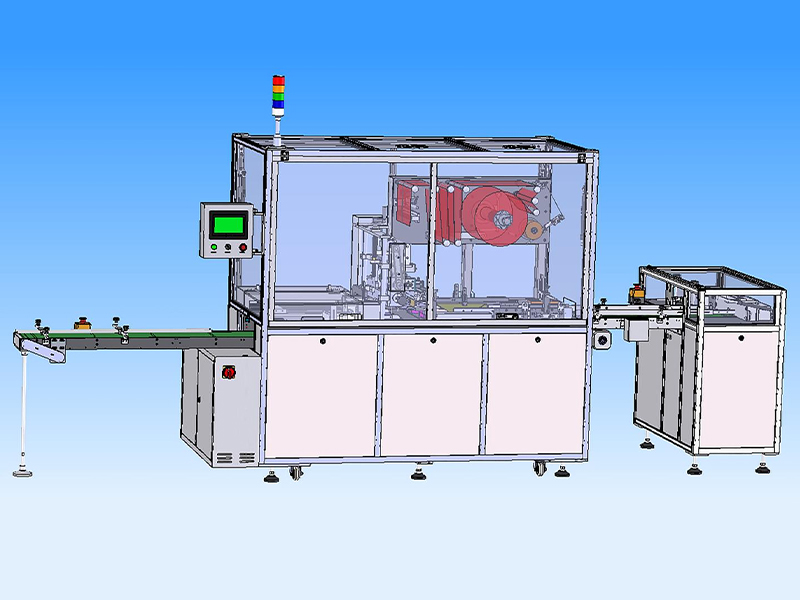

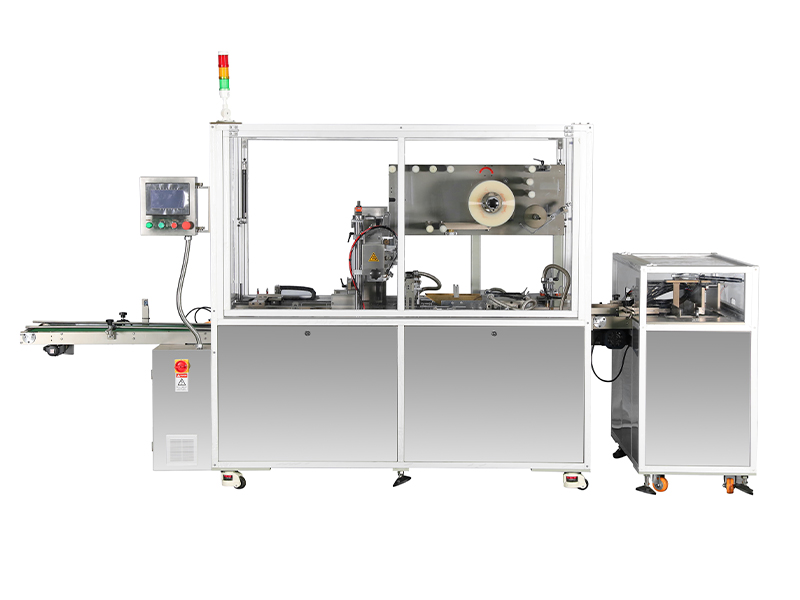

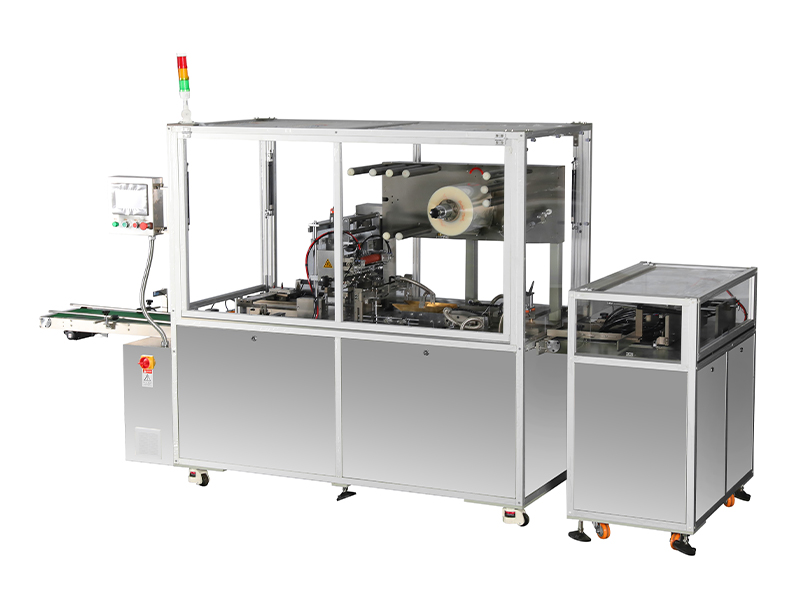

Coffee Tea Box Transparent film 3D packaging machine

1. This machine is a fully automatic high-speed stand-alone transparent film packaging equipment, adopting flat-push packaging mode, all wrapping and heat sealing actions are completed by mechanical gears, cams, and connecting rod drive, with fast speed, stable operation and other characteristics.
2. Replacement of different size moulds can pack different size products, adopting a new simple design structure, which makes the replacement of moulds easier and faster.
3. Adopting frequency converter to adjust the packing speed, adjusting the production speed according to different product sizes, and adjusting the range of 10-100 packages/minute.
4. According to the need of the product, the back channel can increase the two sides of the ironing mechanism with the use of the six sides of the product are ironing wrinkles effect is more perfect.
5. Simple and quick disassembly and installation of the pull-line function, easy to use a variety of anti-counterfeiting easy to pull the line function, can play the role of anti-counterfeiting, has been unsealed.
6. Automatic conveying and feeding and manual conveying and discharging are two kinds of feeding mechanisms, automatic conveying and feeding can be connected with the fully automated unmanned production line to use.
7. The automatic feeding mechanism has the function of stopping the machine without a box, and it is equipped with a jamming overload protection device and a double-layer blowing auxiliary film-lowering device.
8. Adopting a European standard aluminium profile frame and stainless steel door design, the upper part of the machine adopts an aluminium profile and PC board to form a protective cover, which plays a safe and beautiful role.

MAIN TECHNICAL PARAMETERS
Model: JW-260-A Transparent film 3D packaging machine
Packing speed: Single box film per minute (10-100)
Carton specifications: L (50-200) * W (25-100) * H (10-60)mm
Input power: Three- phase Five- wire 380V/ 50Hz
Total power: 5.5kw
Heat sealing temperature: 110-180 ℃
Equipment weight: 680 kg
Packaging material: BOPP double-sided heat-sealing film(commonly known as smoke film)
Inner hole of film roll: 70 Outer diameter: 300mm, various colors of self-adhesive paste easy pull line
Junwen proudly presents the JW-260-A Transparent Film 3D Packaging Machine, a pinnacle of technological advancement in the packaging industry. This state-of-the-art machine encapsulates innovation, efficiency, and versatility to redefine the art of packaging. Ideal for high-speed standalone operations, the JW-260-A is engineered to elevate your packaging processes to new heights.
1. Cutting-Edge Mechanical Precision:
At the core of the JW-260-A lies a harmonious blend of mechanical gears, cams, and linkages, meticulously synchronized to orchestrate seamless wrapping and heat-sealing actions. This results in unparalleled speed and steadfast operation, setting the stage for a new era of packaging efficiency.
2. Modular Adaptability:
The JW-260-A's innovation lies in its modularity, allowing for swift adaptation to varying product sizes. By seamlessly switching between different mold specifications, this machine enables you to effortlessly package products of diverse dimensions. The machine's minimalist design further simplifies mold replacement, saving precious time and effort.
3. Precision through Variable Frequency Control:
Equipped with a variable frequency inverter, the JW-260-A empowers you to tailor packaging speeds according to product dimensions. This adjustment, spanning a range of 10 to 100 packages per minute, guarantees optimal production rates, ensuring your operations are precisely aligned with market demands.
4. Flawless Embossing Enhancement:
The JW-260-A's versatility extends beyond packaging with the addition of an optional dual-sided embossing unit. This feature caters to the perfectionists, as it ensures all six sides of your products are meticulously flattened and creased, accentuating their visual appeal and quality.
5. User-Centric Security Features:
In response to industry demands, the JW-260-A integrates a quick-detach pull-tab feature that doubles as an anti-counterfeit solution and tamper-evident mechanism. This multi-faceted innovation not only safeguards your products but also boosts consumer confidence in their authenticity.
6. Dual Feeding Mechanisms:
Whether you require automation or manual intervention, the JW-260-A caters to both approaches. Its automatic feeding system seamlessly aligns with fully automated production lines, enhancing overall efficiency while maintaining flexibility for manual feed as needed.
7. Intelligent Safety and Assistance:
The JW-260-A prioritizes safety through its automated feeding mechanism, featuring a no-box stop function. This, combined with features like card obstruction overload protection and a dual-layer air-assisted film feeding device, ensures smooth and secure operations.
8. Aesthetic and Robust Design:
Safety meets elegance in the JW-260-A's design, featuring European-standard aluminum frames and stainless steel door panels. The upper portion incorporates aluminum profiles and PC panels to create a protective cover that not only enhances safety but also adds a touch of visual sophistication.
As an industry trailblazer, Junwen's commitment to innovation resonates in every aspect of the JW-260-A Transparent Film 3D Packaging Machine. This remarkable solution encapsulates Junwen's dedication to pushing the boundaries of packaging technology, transforming packaging processes, enhancing product presentation, and prioritizing operational safety.
Inquiry Us
  • Product Description

+86 159 5890 5083

ywjwjx520@126.com

Technical parameters:

JW-260-A Main Technical Parameters
Packing speed: Single box wrapping film per minute(10～100)
Packing size: L（50～200）W（25～100）H（10～60）mm
Input power: Three-phase five-wire 380V 50Hz
Total design power: 5.5kw
Equipment weight: 680kg
Package material: BOPP double-sided heat-sealed film, inner hole Φ70 outer diameter Φ300mm, various kinds of easy-pull cables.

USE PACKAGING MATERIALS

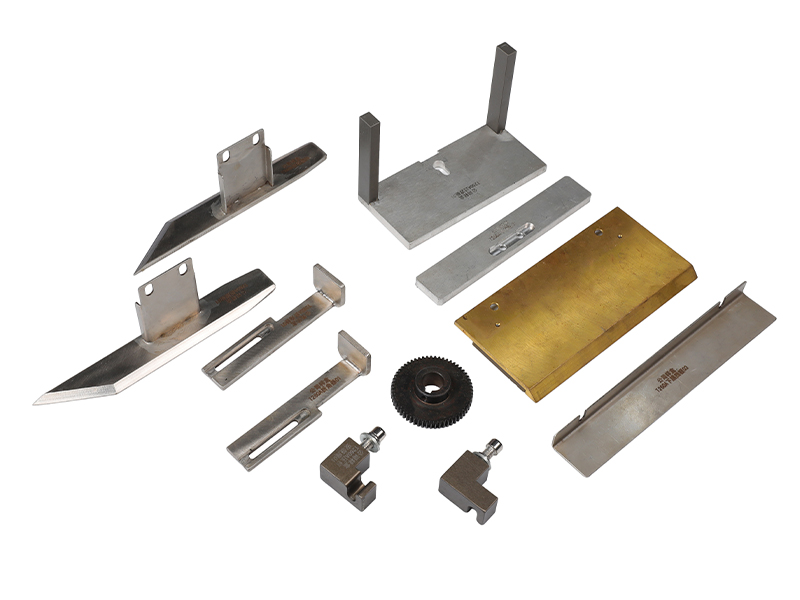

Complete set of molds for this machine: Pictures of sample packaging boxes: Picture of BOPP double-sided heat sealing film: Pictures of various easy-to-tear threads:

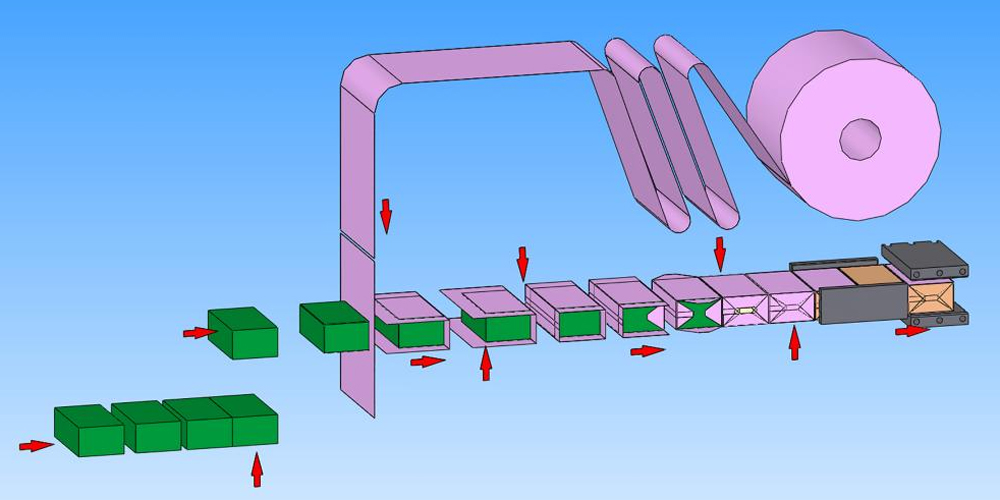

Flowchart of the envelope
